3D Curve Development with Crossing and Twisting from 2D Drawings

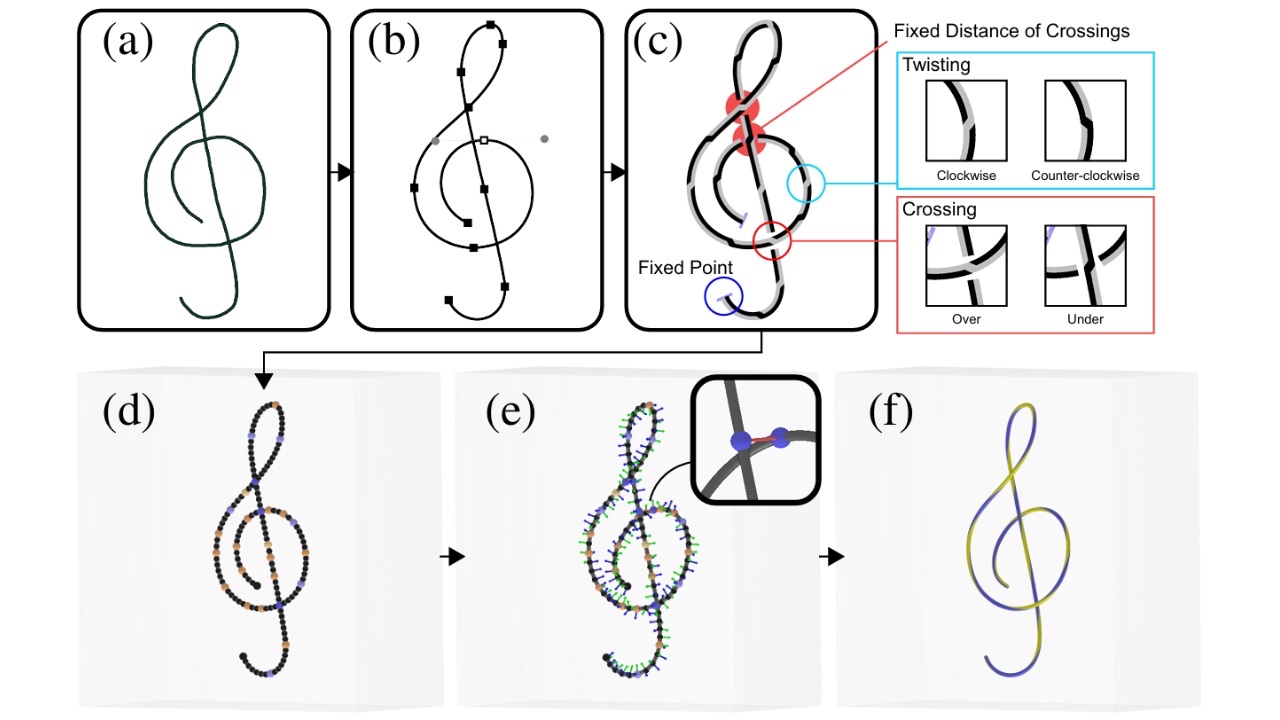

An interactive curve-design system that lets users sketch crossings and twists in a two-strand 2D diagram. It extracts feature points, optimizes their height and over-under relationships, then generates editable 3D curves with B-splines.
